Custom Industrial Projects and Build to Print Work

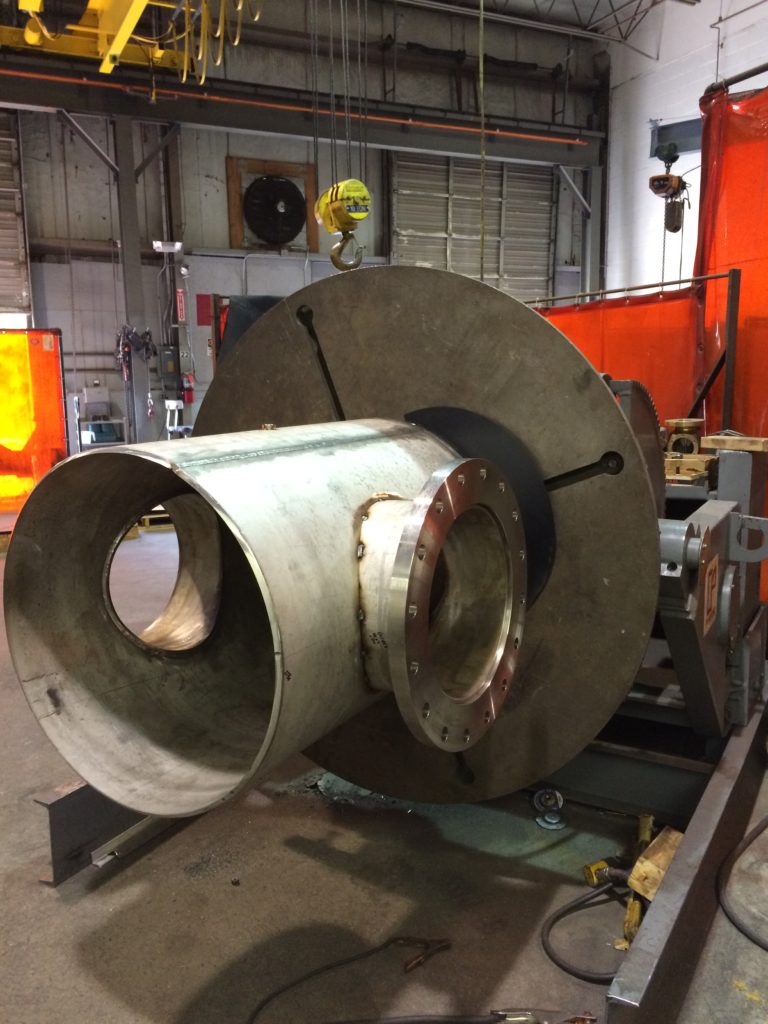

Definition: Tate Andale is an integrated shop that is able to design and manufacture products, equipment, and component parts to exacting customer specifications. We specialize in small runs of large custom process piping systems, power piping systems, and mechanical component parts built from cast iron, carbon steel, stainless steel, copper based alloys, and engineered plastics. Our quality management system is certified to ISO 9001.  We also carry a U-Stamp and an R-Stamp, which allows us to design, manufacture, and repair pressure vessels rated up to 3000 PSIG. Contact us to determine if your shop-build custom industrial project or build-to-print work is a good fit for Tate Andale.

  • Design
    • Certified to Design Pressure Vessels in Accordance with ASME Section VIII, Division 1
    • CEI DesignCalcs Pressure Vessel Design & Welding Software
    • Solidworks 3D CAD Software
    • Solidworks Flow Simulation Computational Fluid Dynamics (CFD) Software
    • Fluid Control Systems Integration
    • Mechanical Design

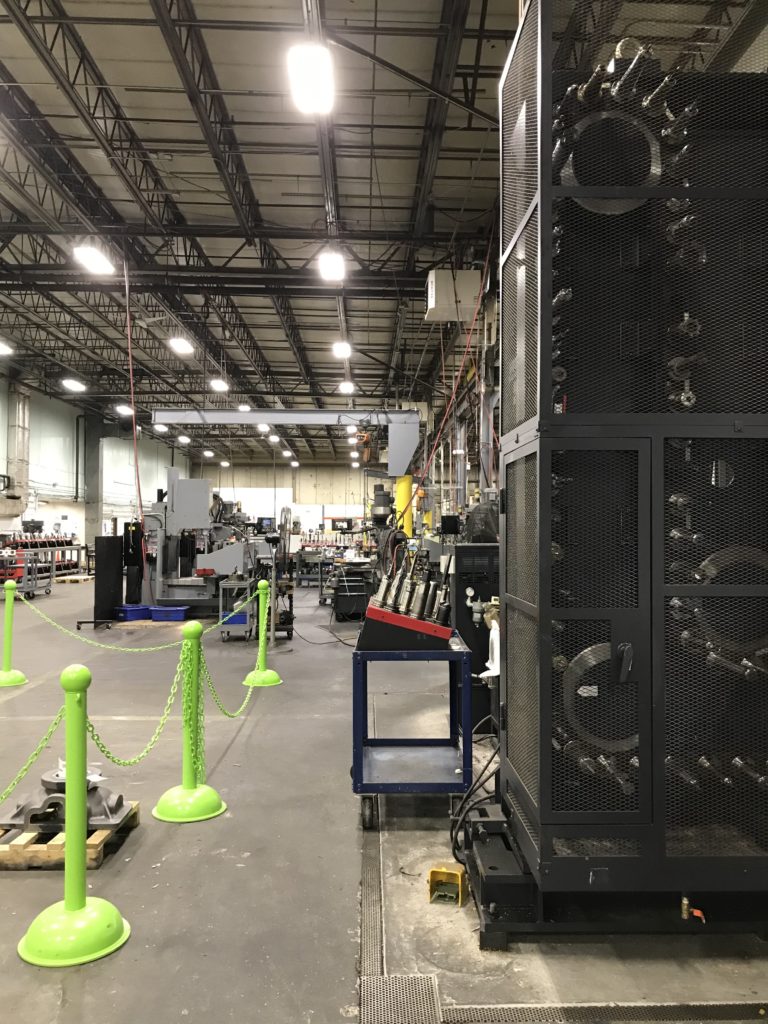

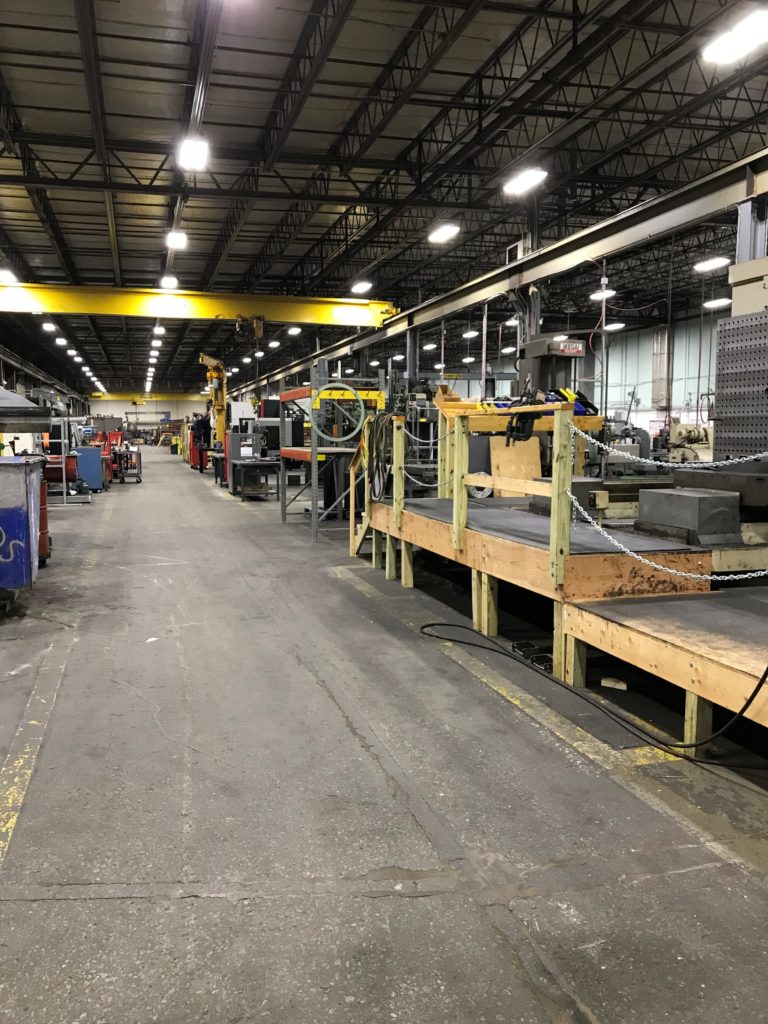

  • Machine Shop
    • Doosan 110S CNC Boring Mill: 55.1’’x63’’ Table/78.7’’ X x 59.1’’ Y x 47.2’’ Z x 19.7’’ W/ 15,400 LBS Capacity
    • Toshiba BMC 13B CNC Horizontal Mill: 49.2" x 49.2" Table/ 70.8" X x 49.2" Y x 39.4" Z/ 6600 LBS Capacity (Rebuilt in 2016)
    • Yama-Seiki BM-1020 CNC Vertical Mill: 44.1" x 23.6" Table/ 40.2" X x 23.6" Y x 23.6" Z/ 2200 LBS Capacity
    • Bullard 54’’ Cutmaster Vertical Turret Lathe: 62’’ Maximum Swing x 44’’ Maximum Distance Under Rail (Rebuilt in 2017)
    • Bullard 36’’ Cutmaster Vertical Turret Lathe: 45’’ Maximum Swing x 30’’ Maximum Distance Under Rail (Rebuilt in 2018)
    • Ikegai DA-110T Horizontal Boring Mill: 48" x 48" Table/60" X x 48" Y x 48" Z with 24" Quill Travel/4.5" Spindle
    • Carlton Radial Drill: 6 foot Arm on 19 inch Column
    • Ikeda Radial Drill: 3 foot Arm on 11 inch Column
    • Three Acer 1454 CNC Bed Mills: 14’’x54’’ Table
    • Acer 3VK CNC Knee Mill: 10’’x50’’ Table
    • Acer 1440V Engine Lathe: 14’’ Swing x 40’’ Bed
    • Bridgeport Knee Mill: 10’’x50’’ Table
    • American Machine Tool Turnmaster Engine Lathe: 13’’ Swing x 40’’ Bed
    • Summit 24X60B Engine Lathe: 24’’ Swing x 60’’ Bed
    • Ganesh GT-2080 Engine Lathe: 20’’ Swing x 80’’ Bed
    • Ganesh GT-1660S Engine Lathe: 16’’ Swing x 60’’ Bed
    • Okuma LB-400 CNC Lathe: Max Turning Diameter 16.54" x Max Turning Length 49.21’’
    • Hwacheon Hi-Tech 200A CNC Lathe: Max Turning Diameter 13.8" x Max Turning Length 15.7’’
    • Hwacheon Hi-Tech 450BL CNC Lathe: Max Turning Diameter 16.54" x Max Turning Length 52.63’’
    • DOALL G-10 Surface Grinder: 8’’ x 24’’ Table
    • Two 10 Ton Overhead Cranes (Railway runs length of shop)
  • Weld Shop
    • Calibrated Miller Maxstar 200 TIG Welder
    • Two Calibrated Miller Maxstar 280 TIG Welders with Coolmate Coolant Systems
    • Calibrated Miller Syncrowave 250 DX TIG Welder with TIGRunner
    • Two Calibrated Power Wave Lincoln MIG Welders with Power Feed and Miller Coolmate Coolant Systems
    • Various Weld Positioners
    • Controlled Inventory of Weld Wire with Material Certifications
    • Two 10 Ton Overhead Cranes (Railway runs length of shop)
  • Sheet Metal Shop
    • 88 Ton Brake
    • 3.5’’ Roller
    • 5’’ Roller
    • 10’ Sheer
    • 52’’ Hole Cutter
    • 20 Ton single Station Punch Press
    • KVA 30 Spot-Welder
    • KVA 39 Spot-Welder
    • KVA 40 Spot-Welder
    • KVA 100 Spot-Welder
  • Assembly
    • Various Calibrated Hydrostatic Test Stands
    • HydroPro TubePro Tube Setter
    • Spray Booth
    • 2190 TEP Light Turbine Lube Oil Flow Test Stand (200 GPM Max)
    • Steam Plant Clean Room
    • Two 10 Ton Overhead Cranes (Railway runs length of shop)
  • Quality Control
    • Climate Controlled Lab
    • Calibrated Coordinate Measuring Machine
    • Calibrated Optical Comparator
    • Large Inventory of Calibrated Ring and Plug Gauges
    • Large Inventory of Calibrated Calipers, Height Gauges, and Micrometers
    • Various Calibrated Surface Plates
